R-2000-Shenzhen EVOC JM Technology Co. Ltd

Industry Application

Algorithm

Built-in industry-leading AI barcode decoding algorithm
Lens

Manual Focus Lens
Light Source

Integrated multi-group controllable lighting meeting flexible production demands
Sensor

Fast-response image sensor ensures high-precision reading of every image
Performance

High-precision reading capability with superior image recognition quality
Interface/Protocol

Built-in rich I/O interfaces effortlessly handles complex field scenarios

Model		R-2100	R-2300	R-2005H	R-2013H
Product Performance	Sensor	CMOS Image Sensor
	Resolution	728*544	1280*1024	728*544	1280*1024
	Readable Codes	1D Codes: Code128, Code39, Code93, EAN13, EAN8, UPC-A, UPC-E, CodeBar, ITF25
	Readable Codes	2D Codes: QR, MicroQR, DataMatrix (ECC200), GS1 DataMatrix, PDF417
Communication Protocol	Ethernet	TCP/IP, FTP, HTTP, ModBus, PROFINET, EtherNet/IP		TCP/IP, FTP, HTTP, ModBus
Communication Protocol	Serial Communication	RS-232, Communication Rate: 9600, 19200, 38400, 57600, 115200bps
Structure	Focus Method	Fixed Focus
	Polarized Filter	Support		/

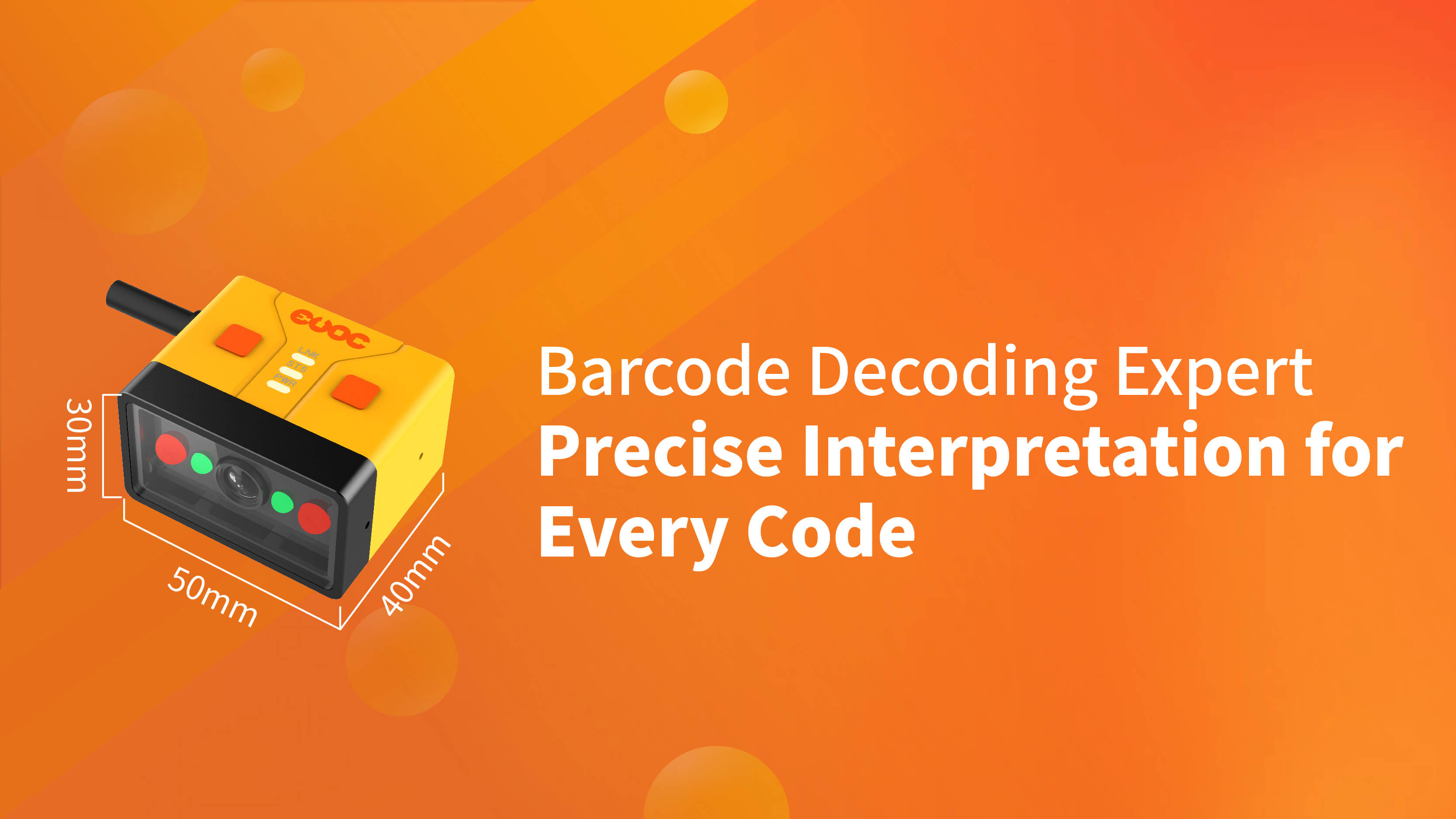

	Dimensions	504030 (mm)
	Weight	Approximately 118g
Electrical Specifications	Illumination Source	LED
	Position Indicator	High-Brightness Green LED
	Status Indicator	Power LED, Network LED, Decode Status LED, Decode Beep
	Button	Trigger Button
	Communication Ports	Ethernet, Serial
	Digital IO	Isolated IO: 2 Inputs, 2 Outputs
	Power Supply / Consumption	≤ 10W@24VDC (±10%)
Environmental Resistance	Operating Temp.	0~50℃		0~45℃
	Storage Temp.	-10~50℃
	Humidity	20%~80%RH (Non-Condensing)
	Protection Rating	IP64		/
Standards	Certification	CE Certified, FCC Certified, Compliant with EU ROHS
