R-7000-Shenzhen EVOC JM Technology Co. Ltd

Industry Application

High precision decoding of small codes

5MP/12MP/20MP optional, with ultra-high pixel code reading in the same level.
Long distance and wide field of view

Adopting innovative multi-stage zoom method on the basis of the original large depth of field Going further without adjustment can achieve panoramic depth coverage.
Adaptive large depth of field

Utilizes a specially designed liquid lens that mimics the human eye's working principle to achieve millisecond-level zooming and focusing.

Model		R-7600	R-7500
Product Performance	Sensor	CMOS Image Sensor
	Pixel Count	2448*2048	4096*3072
	Readable Codes	Barcode: Code128, Code39, Code93, EAN13, EAN8, UPC-A, UPC-E, CodeBar, ITF25
	Readable Codes	QR Code: QR, MicroQR, DataMatrix (ECC200), GS1 DataMatrix, PDF417
Communication Protocols	Ethernet	TCP/IP, FTP, HTTP, ModBus, PROFINET, EtherNet/IP
Communication Protocols	Serial Communication	RS-232, Baud Rates: 9600, 19200, 38400, 57600, 115200bps
Structure	Focusing Method	Manual/Automatic
	Polarization Filter	Supported

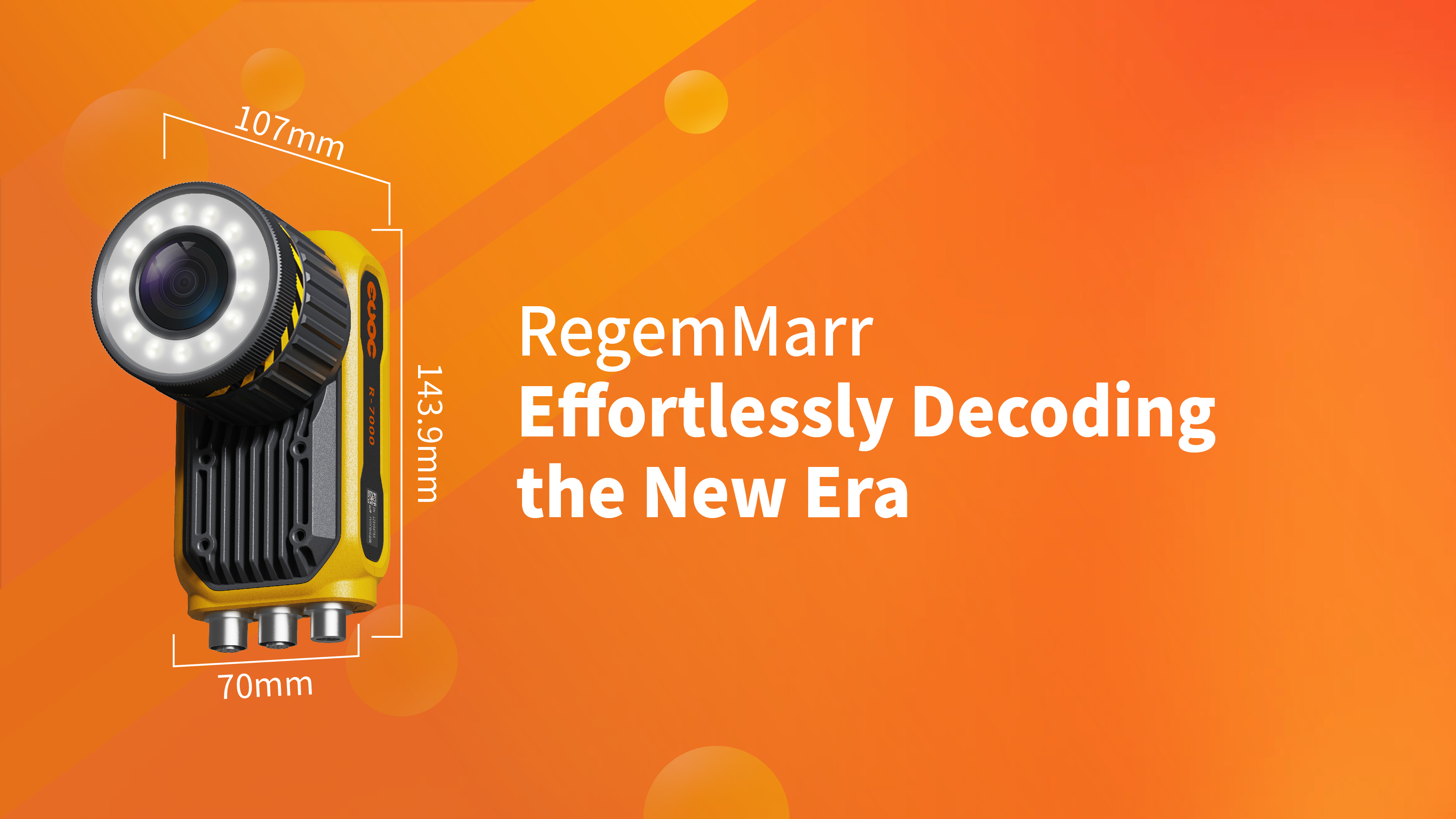

	Dimensions	143.9×70×107(mm)
	Weight	Approx. 710g
Electrical Specifications	Illumination Source	High-brightness Red LED / High-brightness White LED
	Aiming Indicator	High-brightness Green LED
	Status Indicators	Power Indicator, Network Indicator, Decode Status Indicator, Running Indicator, User-defined Indicator, Decode Beep
	Buttons	Tuning Button, Trigger Button
	Communication Interfaces	Ethernet, Serial Port
	Digital I/O	Isolated I/O Input/Output, 2 Inputs, 2 Outputs
	Power Supply / Consumption	≤ 10W@24VDC (±10%)
Environmental Resistance	Operating Temperature	0~50℃
	Storage Temperature	-10~51℃
	Ambient Humidity	20%~80%RH (non-condensing)
	Protection Level	IP65
Standards	Certification	CE Certified, FCC Certified, Complies with EU RoHS Standard
