Built in industry-leading AI code reading algorithm.
Equipped with cutting-edge liquid lens technology for adaptive auto-focusing
Integrated multi-channel controllable lighting system with independent zone control to meet flexible production demands
The fast response image sensor ensures that every image can be read with high precision.
Delivers high-precision reading with superior image recognition quality
Comprehensive built-in I/O interfaces provide robust performance in complex field environments
Model | R-5350 | R-3150 | |
---|---|---|---|
Product Performance | Sensor | CMOS Image Sensor | |
Pixel Count | 1280*1024 | 2592*1944 | |
Supported Symbols | 1D Codes: Code128, Code39, Code93, EAN13, EAN8, UPC-A, UPC-E, CodeBar, ITF25 | ||
2D Codes: QR, MicroQR, DataMatrix (ECC200), GS1 DataMatrix, PDF417 | |||
Communication Protocol | Ethernet | TCP/IP, FTP, HTTP, ModBus, PROFINET, EtherNet/IP | |
Serial Communication | RS-232, Communication Speeds: 9600, 19200, 38400, 57600, 115200bps | ||
Structure | Focusing Method | Auto | |
Polarizing Filter | Supported | ||

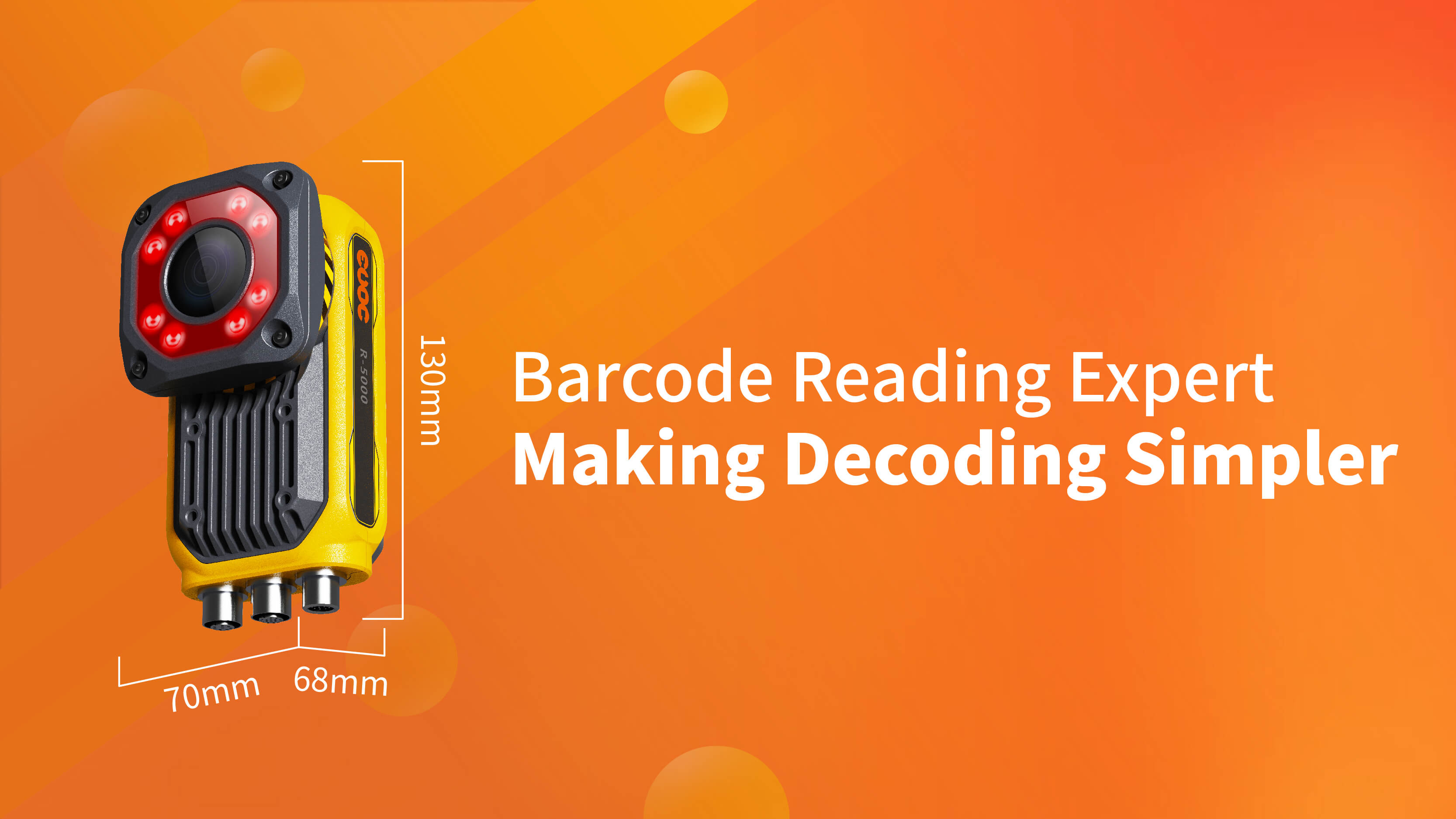

Dimensions | 130*70*68(mm) | ||
Weight | Approx. 660g | ||
Electrical Specifications | Illumination Source | High-brightness Red LED / High-brightness White LED | |
Positioning Indicator | High-brightness Green LED | ||
Status Indicator | Power Indicator, Network Indicator, Decoding Status Indicator, Operation Indicator, User-defined Indicator, Decoding Beep | ||
Communication Interface | Ethernet, Serial Port | ||
Digital IO | Isolated IO Input/Output, 2 Inputs, 2 Outputs | ||
Power Supply / Power Consumption | ≤ 20W@24VDC (±10%) | ||
Environmental Durability | Operating Temperature | 0~50℃ | |
Storage Temperature | -10~51℃ | ||
Environmental Humidity | 20%~80%RH (non-condensing) | ||
Protection Rating | IP65 | ||
Standards | Certification | CE Certification, FCC Certification, Compliant with EU ROHS Standards |
