The IQ-8000, developed based on our proprietary core image processing algorithms and equipped with multiple high-resolution cameras and optical systems, is engineered to meet the high-quality demands of premium clients. It represents the industry's first precision optical equipment capable of fully replacing human visual inspection while guaranteeing superior quality. This system is ideally suited for intelligent detection of display terminals including smart screens, intelligent TVs, monitors, and all-in-one PCs. When integrated with the AT-30 automatic docking system, the IQ-8000 can: Replace manual signal cable connections Eliminate human visual inspection Achieve end-to-end automated testing Deliver a production capacity of 4,800 units/day
| Product Name | Inspection Items | ||
|---|---|---|---|

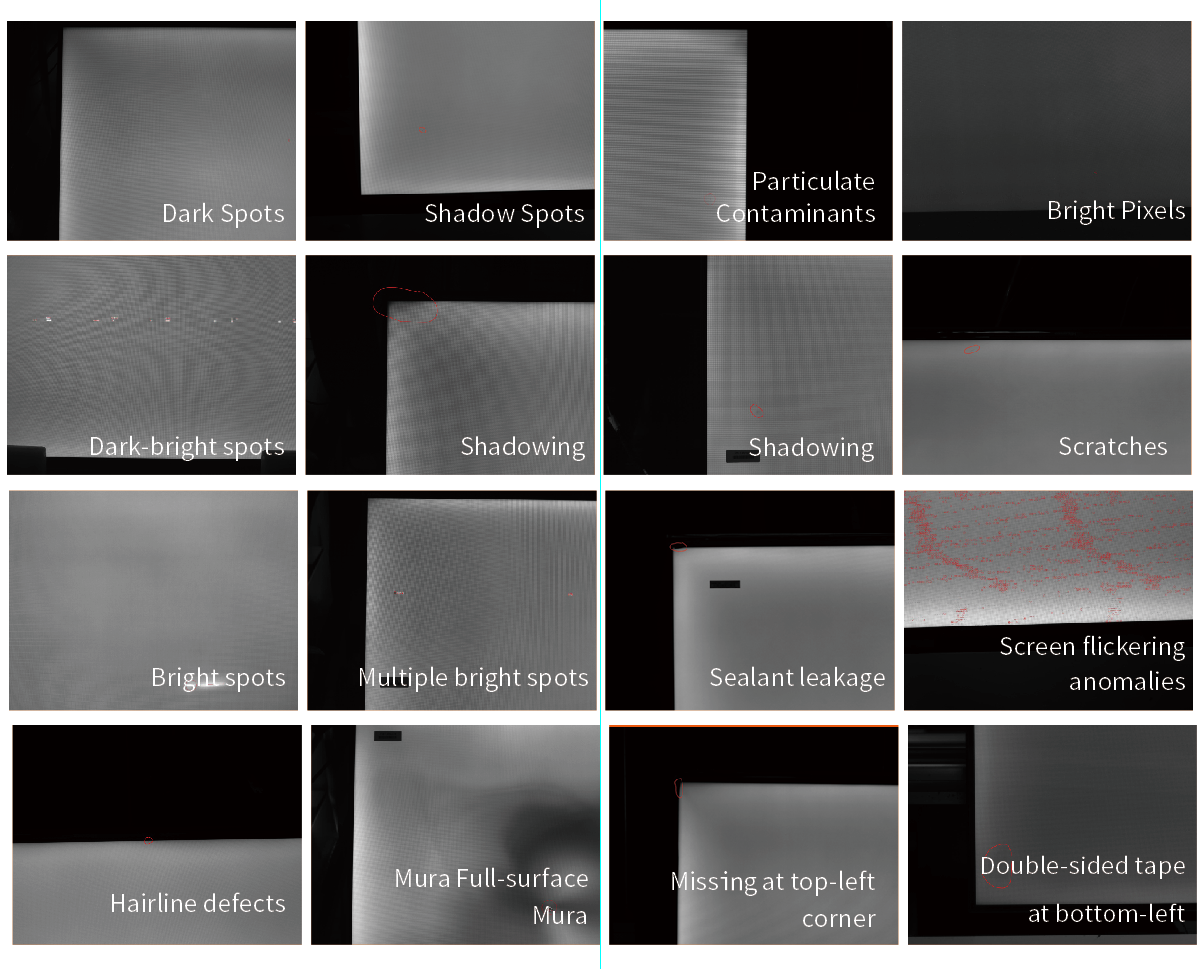

| Testing Capabilities | Point Defects | Bright spots, dark spots, polarizer contaminants, light leaks, particulate matter, etc | |
| Line Defects | Bright lines, dark lines, polarizer linear defects, linear contaminants, etc. | ||
| Area Defects | Stains, crosstalk, backlight uniformity, dents, bubbles, etc. | ||
| Inspection Metrics | Accuracy ≥97.5%, Over-detection rate ≤2%, Missed detection rate ≤0.5% | ||
| Inspection Speed | 3 seconds per frame (Red, Green, Blue, White, Black, 50% Gray) | ||
| Detection Precision | RGB Sub-pixel Level | ||
| Inspection Coverage | 32"~43"，49"~65"， ≥65" | ||
| IT Support | SCADA；MES；CIM | ||
| Darkroom | Customized per site requirements | ||
| Customized Solutions | Support | ||
| Labor Savings | Reduces 3 operators while maintaining quality assurance | ||
