R-X100-Shenzhen EVOC JM Technology Co. Ltd

Industry Application

All-in-One Reading Solution

Single-device coverage for entire logistics surfaces, delivering convenience and efficiency; 8K ultra-high-speed CMOS camera achieves up to 5.3m/s reading speed, compatible with most conveyor systems
Zero-Gap High-Speed Reading

Robust continuous decoding algorithm supports short/no spacing between packages (front/rear & left/right) enabling 24/7 uninterrupted code reading
Ultra-Robust Decoding Without Missed Reads

Advanced checksum algorithm enables high-speed scanning with verification; Combined with multiple imaging optimization algorithms to comprehensively solve issues like blurry/damaged codes achieving ultra-reliable error-free reading

Model		R-X108	R-X116	R-X080H
Product Performance	Sensor	CMOS Image Sensor
	Pixel Count	High-Speed CMOS Line Scan (8192 Pixels)	High-Speed CMOS Line Scan (16384 Pixels)	High-Speed CMOS Line Scan (8192 Pixels)
	Decodable Symbologies	Barcode：Code128,Code39,Code93,EAN13, EAN8,UPCA,UPC-E,CodeBar,ITF25		Barcode：Code128,Code39,Code93,EAN13,EAN8,UPC-A,UPC-E,CodeBar,ITF2
	Decodable Symbologies	QR Code：QR,MicroQR,DataMatrix（ECC200）,GS1DataMatrix，PDF417		QR Code：QR,DataMatrix（ECC200）,GS1DataMatrix，PDF417
Communication Protocol	Ethernet	TCP/IP，FTP，HTTP，ModBus，PROFINET，EtherNet/IP		TCP/IP，FTP，HTTP，ModBus
Communication Protocol	Serial Communication	RS-232，Communication Speed：9600，19200，38400，57600， 115200bps		RS-232，Communication Speed：9600，19200， 38400，57600，115200bps
Structure	Focusing Method	Autofocus		ManualFocus

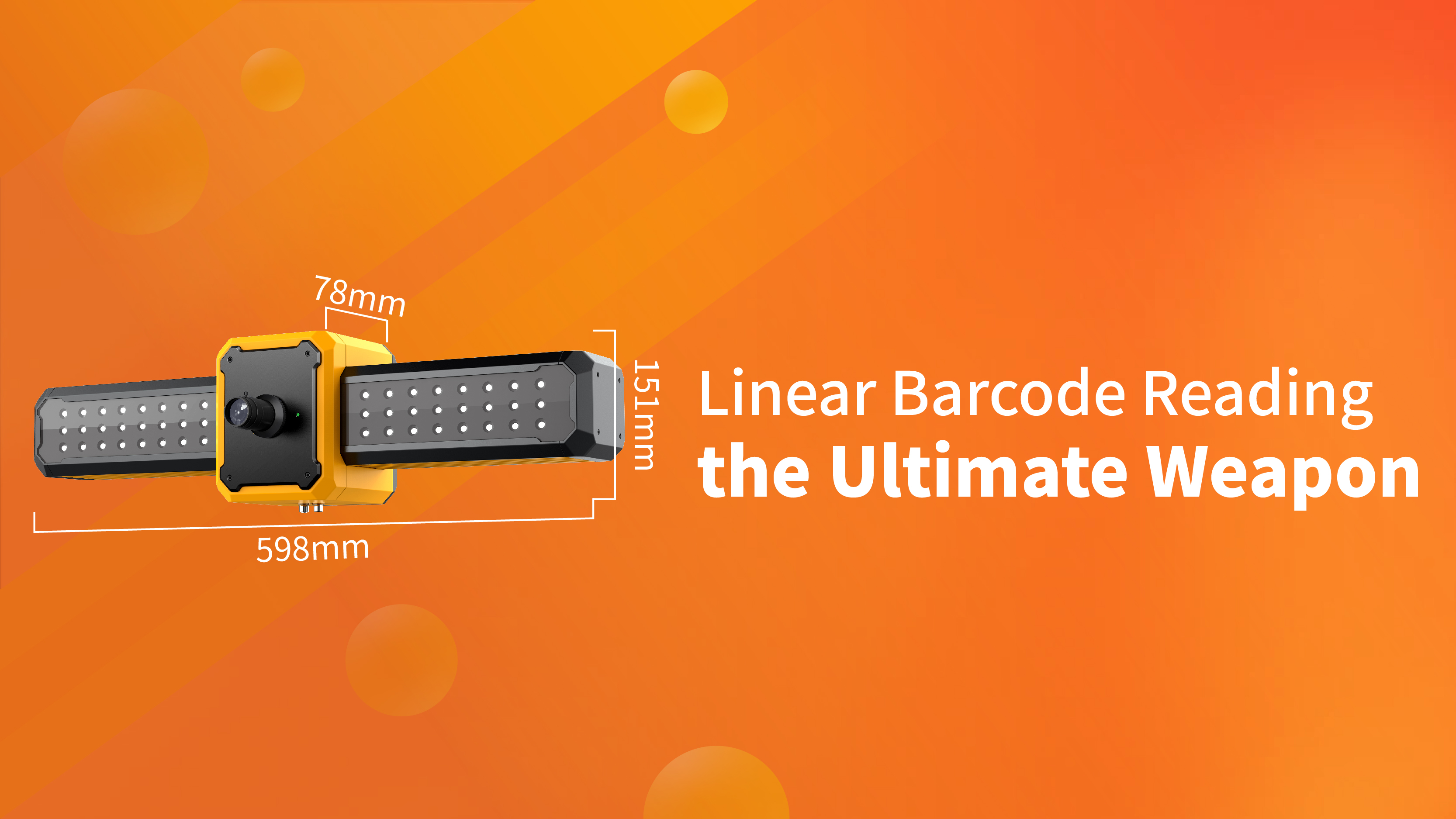

	Dimensions	59815178（mm）
	Weight	Approxim 3.5kg
Electrical Specifications	Illumination System	High-brightness red LED / High-brightness white LED
	Buzzer	Support
	Button	Trigger Button
	Communication Interface	Ethernet，Serial Port
	Digital I/O	Isolated Digital I/O (2 Input + 2 Output)（Output: 100mA or lower）
	Power Supply/Consumption	≤ 160W@48VDC（±10%）
Environmental Resistance	Operating Temperature	0~50℃		0~45℃
	Storage Temperature	-10~51℃
	Environmental Humidity	20%~80%RH（No condensation）
	Protection Level	IP65		/
Standard	Certification	CE Certification,Certification,Compliance with EU RoHS Standards
