Built-in industry-leading AI decoding algorithm for precise and efficient reading of all types of barcodes and QR codes, unaffected by dirt, damage or other interferences.
Equipped with FA lens for adaptive auto-focusing featuring foolproof program debugging.
Integrated multi-channel controllable lighting system enables independent zone control to meet flexible production demands.
High-precision MIL-grade hardware/software effortlessly reads ultra-small codes; exceptional 1D/2D barcode decoding performance; ultra-high-speed omnidirectional barcode capture.
High-speed image sensor ensures exquisite image quality and high-precision reading for every capture.
More than just an intelligent barcode reader it serves as an exceptional business assistant delivering powerful functions beyond imagination - from production statistics to piecework counting and beyond.
Equipped with a wide range of built-in IO interfaces compatible with RS232 interface and supports common communication protocols such as TCP/IP Serial FTP HTTP ensuring smooth operation even in complex field environments.
| Model | R-8600 | R-8800 | R-8900 | R-8120H | R-8200H | |
|---|---|---|---|---|---|---|
| Product Performance | Sensor | CMOS Image Sensor | ||||
| Resolution | 2448*2048 | 4096*3000 | 8192*4320 | 4090*3000 | 5480*3648 | |
| Supported Codes | 1D Barcode: Code128, Code39, Code93, EAN13, EAN8, UPC-A, UPC-E, CodeBar, ITF25 | |||||
| 2D Barcode: QR, MicroQR, DataMatrix (ECC200), GS1 DataMatrix, PDF417 | 2D Barcode: QR, DataMatrix (ECC200), GS1 DataMatrix, PDF41 | |||||
| Communication Protocol | Ethernet | TCP/IP, FTP, HTTP, ModBus, PROFINET, EtherNet/IP | TCP/IP, FTP, HTTP, ModBus | |||
| Serial Communication | RS-232, Baud Rates: 9600, 19200, 38400, 57600, 115200bps | |||||
| Structure | Focusing Mode | Manual / Auto | ||||
| Polarizing Filter | Supported | |||||

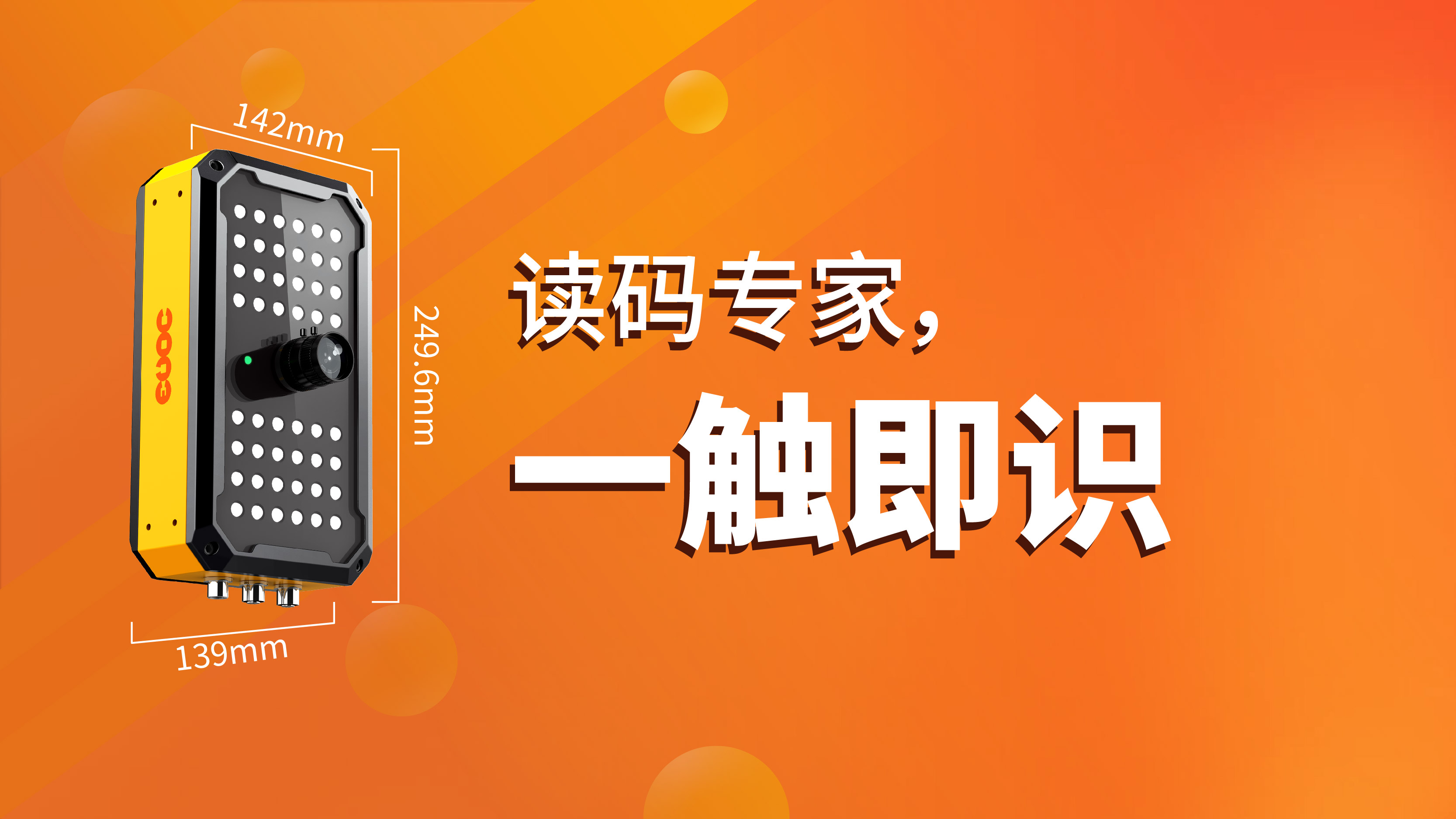

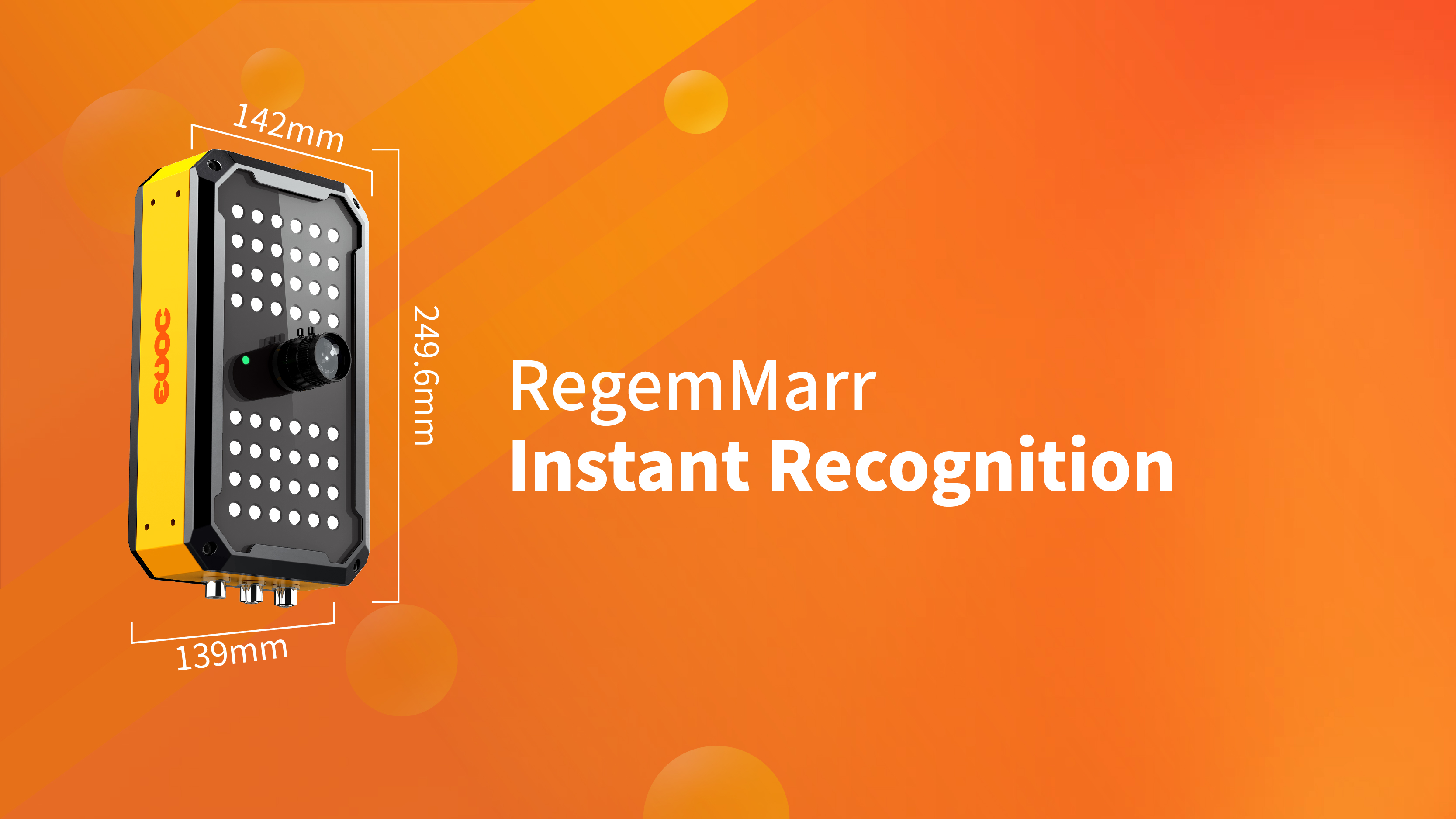

| Dimensions | 249.6*142*95.8 (mm) | 249.6*142*139 (mm) | ||||
| Weight | 1850g | 2050g | ||||
| Electrical Specifications | Illumination Source | High-brightness Red LED / High-brightness White LED | ||||
| Aiming Indicator | High-brightness Green LED | |||||
| Status Indicator | Power indicator, Network indicator, Decoding status indicator, Decoding beep | |||||
| Buttons | Tuning button, Trigger button | |||||
| Communication Interface | Ethernet, Serial port | |||||
| Digital IO | Isolated IO input/output, 2 inputs, 2 outputs | |||||
| Power Supply / Power Consumption | ≤ 60W@24VDC (±10%) | |||||
| Environmental Resistance | Operating Temperature | 0~50℃ | 0~45℃ | |||
| Storage Temperature | -10~51℃ | |||||
| Humidity | 20%~80%RH (non-condensing) | |||||
| Protection Level | IP65 | / | ||||
| Compliance | Certification | CE Certification, FCC Certification, Compliant with EU ROHS Standards | ||||
