proximity sensor

ESP‑IN18‑10N1S is an M18 non-flush type long-range universal proximity sensor, featuring an M18 non-flush design, a detection distance of 10mm, and flexible installation methods. It is widely compatible with most conventional industrial automation production lines.

Industry Application

Product Features

Application Scenarios

Product Specifications

Model		ESP-IN18-10N1S
Basic Features	Dimensions	M18
	Mounting	Non-embeddable (Non-flush)
	Sensing Distance	10mm ± 10%
	Setting Distance	0 ~ 8mm
	Hysteresis	≤ 10% of sensing distance
	Repeatability	< 3%
	Detectable Object	Magnetic metals (sensing distance is reduced for non-magnetic metals)
	Standard Sensing Object	30 × 30 × 1mm
	Indicator	Operation indicator (Yellow LED)
Electrical Data	Response Frequency	400Hz
	Supply Voltage	10 ~ 30V DC (including 10% ripple)
	Current Consumption	< 10mA
	Residual Voltage	< 2V (at load current of 200mA and cable length of 2m)
	Load Current	≤ 200mA (at 30V DC or below)
	Insulation Resistance	≥ 50MΩ (between live parts and housing) at DC500V
	Output Type	NPN
	Output Mode	NO
	Protection Circuit	Output reverse-polarity protection, power supply reverse-polarity protection, surge suppression, short-circuit protection
	Vibration Resistance	10 ~ 55Hz, double amplitude 1.5mm, 2h in each of X, Y and Z directions
	Shock Resistance	1000m/s², 10 times in each of X, Y and Z directions
Environmental Conditions	Ambient Humidity	Operating and storage: –25 ~ 70°C (no icing, no condensation)
	Temperature Influence	Within –10°C ~ +5°C: ±3°C; Within ±10% of sensing distance at –25°C ~ +70°C
	Humidity Influence	Operating and storage: 35 ~ 95%RH
	Protection Degree	IP67 (IEC 60529) ② EMC (EN 60947-5-2)
Mechanical Structure	Connection	Pre-wired type (3-core PVC cable, Ø4mm diameter, 2m length)
	Weight	Approx. 100g
	Housing	Nickel-plated brass
	Sensing Face	PBT

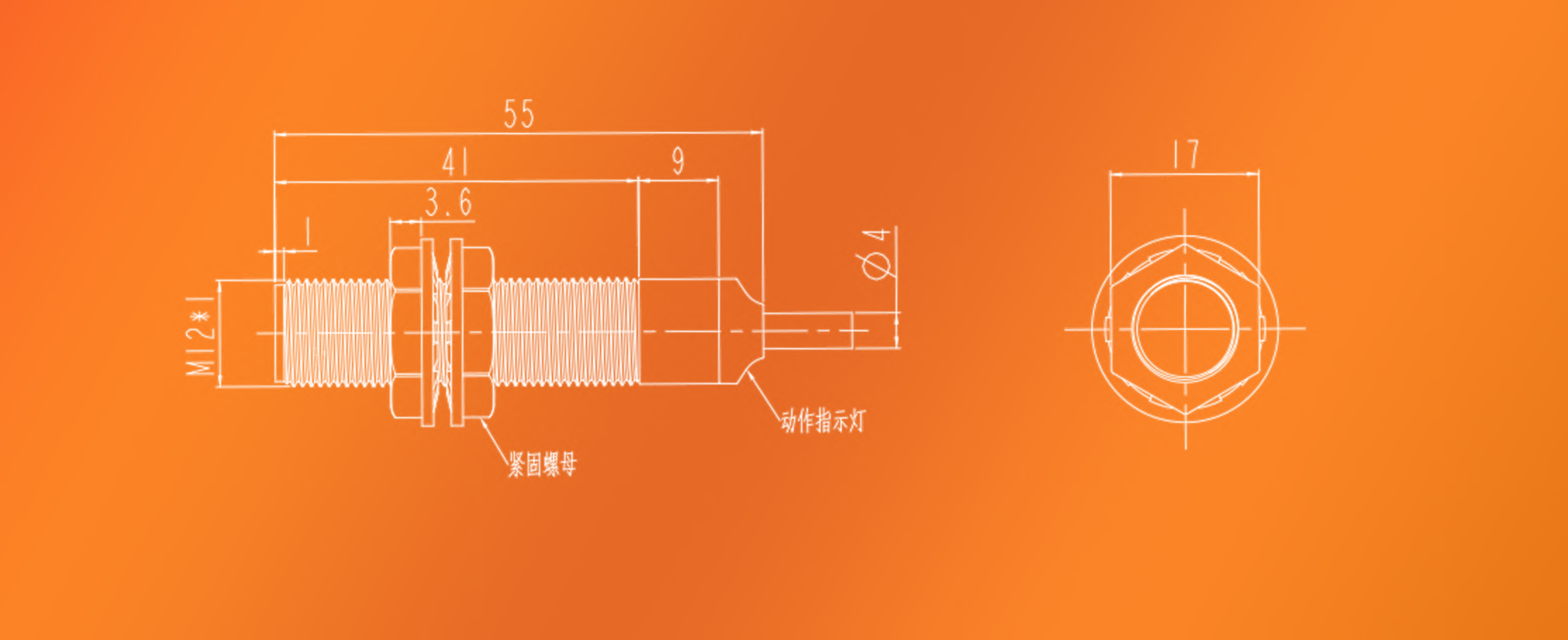

Product Size
